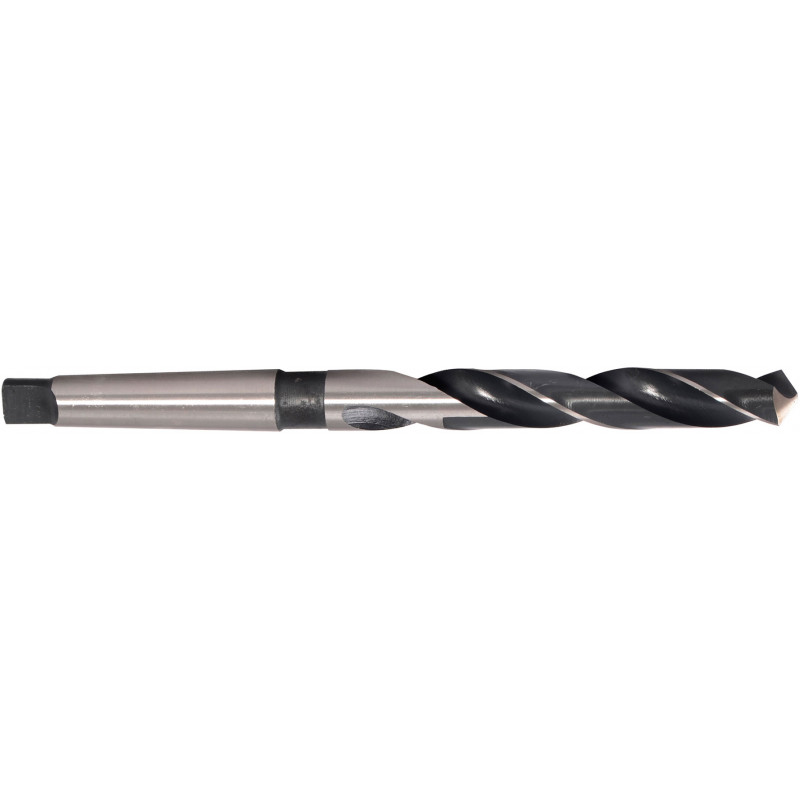

Vrták s kužeľovou stopkou HSS-G, DIN345
-
Od 17,08€
Dostupné možnosti
| Kód produktu: | 22000 |
| Dostupnosť: | Skladom |
- Úroveň kvality: PLUS
- Norma: DIN 345
- Tolerancia: h8
- Materiál: HSS - G
- Bodové skosenie: kužeľová škrupina
- Uhol bodu: 118 °
- Riedenie bodu: DIN 1412 tvar A
- Hrúbka jadra: normálna
- Uhol bočného čela (špirálový uhol): normálny
- Tvar drážky: normálny
- Ďalšie dizajnové prvky podľa: DIN 1414
- Stopka: Morse kužeľová stopka
- Použitie: Oceľ, liatina, grafit, bronz, mosadz, hliník
- Balenie: jednotlivo
- Vysoká odolnosť proti zlomeniu
| Katalógové číslo | Ø mm | stopka morse MK | Celková dĺžka mm | Pracovná dĺžka mm | Balenie | Cena s DPH |
| 220100 | 10 | 1 | 168 | 87 | 1 | 17.08€ |
| 220105 | 10.5 | 1 | 168 | 87 | 1 | 17.08€ |
| 220110 | 11 | 1 | 175 | 94 | 1 | 19.38€ |
| 220115 | 11.5 | 1 | 175 | 94 | 1 | 19.38€ |
| 220120 | 12 | 1 | 182 | 101 | 1 | 21.16€ |
| 220125 | 12.5 | 1 | 182 | 101 | 1 | 21.16€ |
| 220130 | 13 | 1 | 182 | 101 | 1 | 22.63€ |
| 220135 | 13.5 | 1 | 189 | 108 | 1 | 22.63€ |
| 220140 | 14 | 1 | 189 | 108 | 1 | 23.18€ |
| 220145 | 14.5 | 2 | 212 | 114 | 1 | 23.18€ |
| 220150 | 15 | 2 | 212 | 114 | 1 | 23.18€ |
| 220155 | 15.5 | 2 | 218 | 120 | 1 | 23.18€ |
| 220160 | 16 | 2 | 218 | 120 | 1 | 25.64€ |
| 220165 | 16.5 | 2 | 223 | 125 | 1 | 28.15€ |
| 220170 | 17 | 2 | 223 | 125 | 1 | 30.70€ |
| 220175 | 17.5 | 2 | 228 | 130 | 1 | 30.70€ |
| 220180 | 18 | 2 | 228 | 130 | 1 | 34.17€ |
| 220185 | 18.5 | 2 | 233 | 135 | 1 | 34.17€ |
| 220190 | 19 | 2 | 233 | 135 | 1 | 38.35€ |
| 220195 | 19.5 | 2 | 238 | 140 | 1 | 38.35€ |
| 220200 | 20 | 2 | 238 | 140 | 1 | 42.26€ |
| 220205 | 20.5 | 2 | 243 | 145 | 1 | 42.26€ |
| 220210 | 21 | 2 | 243 | 145 | 1 | 47.15€ |
| 220215 | 21.5 | 2 | 248 | 150 | 1 | 47.18€ |
| 220220 | 22 | 2 | 248 | 150 | 1 | 51.99€ |
| 220225 | 22.5 | 2 | 253 | 155 | 1 | 51.99€ |
| 220230 | 23 | 2 | 253 | 155 | 1 | 56.31€ |
| 220235 | 23.5 | 3 | 276 | 155 | 1 | 60.68€ |
| 220240 | 24 | 3 | 281 | 160 | 1 | 63.99€ |
| 220245 | 24.5 | 3 | 281 | 160 | 1 | 63.99€ |
| 220250 | 25 | 3 | 281 | 160 | 1 | 72.76€ |
| 220255 | 25.5 | 3 | 286 | 165 | 1 | 72.76€ |
| 220260 | 26 | 3 | 286 | 165 | 1 | 78.77€ |
| 220265 | 26.5 | 3 | 286 | 165 | 1 | 78.77€ |
| 220270 | 27 | 3 | 291 | 170 | 1 | 85.28€ |
| 220275 | 27.5 | 3 | 291 | 170 | 1 | 85.25€ |
| 220280 | 28 | 3 | 291 | 170 | 1 | 91.54€ |
| 220285 | 28.5 | 3 | 296 | 175 | 1 | 91.54€ |
| 220290 | 29 | 3 | 296 | 175 | 1 | 97.58€ |
| 220295 | 29.5 | 3 | 296 | 175 | 1 | 97.58€ |
| 220300 | 30 | 3 | 296 | 175 | 1 | 105.78€ |
| 220305 | 30.5 | 3 | 301 | 180 | 1 | 105.78€ |
| 220310 | 31 | 3 | 301 | 180 | 1 | 110.92€ |
| 220315 | 31.5 | 3 | 301 | 180 | 1 | 110.92€ |
| 220320 | 32 | 4 | 334 | 185 | 1 | 115.40€ |
| 220325 | 32.5 | 4 | 334 | 185 | 1 | 121.22€ |
| 220330 | 33 | 4 | 334 | 185 | 1 | 126.12€ |
| 220335 | 33.5 | 4 | 334 | 185 | 1 | 132.24€ |
| 220340 | 34 | 4 | 339 | 190 | 1 | 132.24€ |
| 220345 | 34.5 | 4 | 339 | 190 | 1 | 141.89€ |
| 220350 | 35 | 4 | 339 | 190 | 1 | 146.56€ |
| 220355 | 35.5 | 4 | 339 | 190 | 1 | 152.79€ |
| 220360 | 36 | 4 | 344 | 195 | 1 | 158.83€ |
| 220365 | 36.5 | 4 | 344 | 195 | 1 | 170.18€ |
| 220370 | 37 | 4 | 344 | 195 | 1 | 171.93€ |
| 220375 | 37.5 | 4 | 344 | 195 | 1 | 171.93€ |
| 220380 | 38 | 4 | 349 | 200 | 1 | 178.35€ |
| 220385 | 38.5 | 4 | 349 | 200 | 1 | 178.35€ |
| 220390 | 39 | 4 | 349 | 200 | 1 | 194.48€ |
| 220395 | 39.5 | 4 | 349 | 200 | 1 | 194.48€ |
| 220400 | 40 | 4 | 349 | 200 | 1 | 195.93€ |
| 220405 | 40.5 | 4 | 354 | 205 | 1 | 195.93€ |
| 220410 | 41 | 4 | 354 | 205 | 1 | 200.16€ |
| 220415 | 41.5 | 4 | 354 | 205 | 1 | 200.16€ |
| 220420 | 42 | 4 | 354 | 205 | 1 | 220.06€ |
| 220425 | 42.5 | 4 | 354 | 205 | 1 | 220.06€ |
| 220430 | 43 | 4 | 359 | 210 | 1 | 231.62€ |
| 220435 | 43.5 | 4 | 359 | 210 | 1 | 231.62€ |
| 220440 | 44 | 4 | 359 | 210 | 1 | 245.81€ |
| 220445 | 44.5 | 4 | 359 | 210 | 1 | 245.81€ |
| 220450 | 45 | 4 | 359 | 210 | 1 | 271.31€ |
| 220455 | 45.5 | 4 | 364 | 215 | 1 | 265.32€ |
| 220460 | 46 | 4 | 364 | 215 | 1 | 274.32€ |
| 220465 | 46.5 | 4 | 364 | 215 | 1 | 274.32€ |
| 220470 | 47 | 4 | 364 | 215 | 1 | 301.51€ |
| 220475 | 47.5 | 4 | 364 | 215 | 1 | 301.51€ |
| 220480 | 48 | 4 | 369 | 220 | 1 | 304.17€ |
| 220485 | 48.5 | 4 | 369 | 220 | 1 | 304.17€ |
| 220490 | 49 | 4 | 369 | 220 | 1 | 308.59€ |
| 220495 | 49.5 | 4 | 369 | 220 | 1 | 308.59€ |
| 220500 | 50 | 4 | 369 | 220 | 1 | 337.79€ |
| 220550 | 55 | 5 | 417 | 230 | 1 | 403.41€ |
| 220600 | 60 | 5 | 422 | 235 | 1 | 491.89€ |
